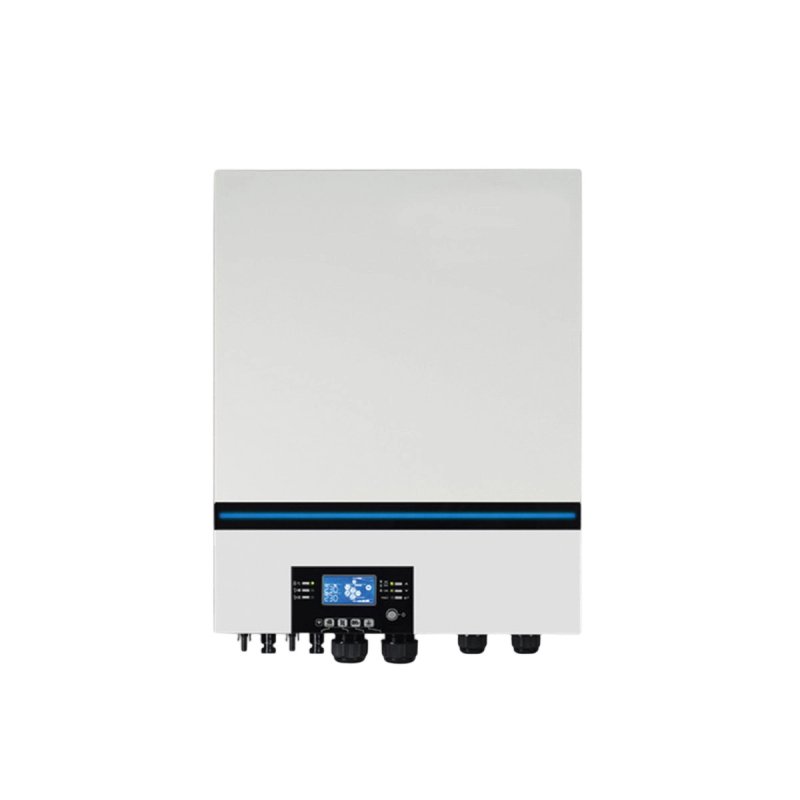

Off-Grid Inverter Specifications

PHOTOVOLTAIC INVERTER

RGB LED status indicator
Built-in Wi-Fi, supports mobile monitoring(compatible with Android/iOS apps)
Supports USB OTG function
Reserved BMS communication port
Replaceable fan design for easy maintenance
Independent battery design
Configurable AC/PV output mode, supportstiming and priority settings
Optional high-power charging current
Optional input voltage range (compatible withhousehold appliances and computers)
Compatible with mains or generator input
Built-in dustproof kit
Supports parallel operation of up to 6 units

Nickname:*

E-mail:*

Your Rating:

Comment:

Parameter	BCT-OGV-11KW
Rated Power	11000VA/11000W
Parallel Capability	Supported,up to 6units
Input
Voltage	230VAC
Optional Voltage Range	170-280V AC(for computers)/90-280VAC(for household appliances)
Frequency Range	50 Hz/60Hz(auto-detection)
Output
AC Voltage Regulation(Battery Mode)	230VAC±5%
Surge Power	22000VA
Efficiency(Peak)	93%
Transfer Time	10 ms(for computers)/20 ms(for household appliances)
Waveform	Pure Sine Wave
No-Load Power Consumption	<70W
Battery
Battery Voltage	48V DC
Float Voltage	54V DC
Overcharge Protection Voltage	63V DC
Solar Charger&AC Charger Parameters
Solar Charger Type	MPPT
Maximum PV Array Power	11000W
MPPT Operating Voltage Range	90-450VDC
Maximum PV Array Open-Circuit Voltage	500VDC
Maximum PV Input Current	18A×2
Maximum Solar Charging Current	150A
Maximum AC Charging Current	150A
Maximum Charging Current	150A
General Parameters
Dimensions(D×W×H,mm)	147.4×432.5×553.6
Net Weight(kg)	18.4
Communication Interface	RS485/RS232/USB/Wi-Fi/dry contact
Operating Environment
Humidity	5%to 95%relative humidity (non-condensing)
Operating Temperature	-10℃to 50℃
Storage Temperature	-15℃ to 60℃
Standards
Safety Compliance	CE
