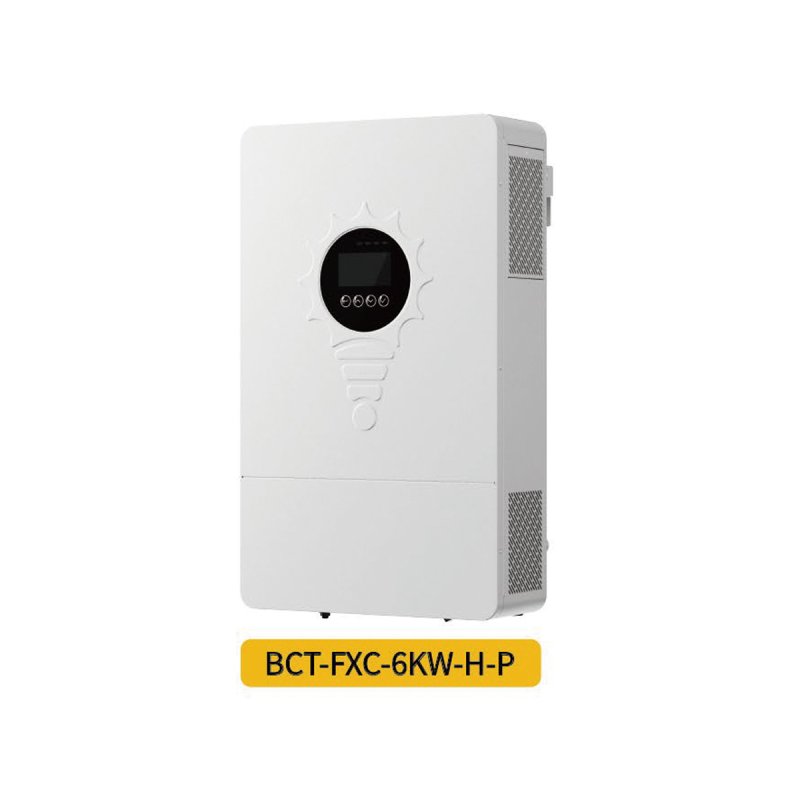

MODEL	BCT-FXC-6KW-H-P
AC INPUT
Rated Input Voltage (VAC)	208/220/230/240;L+N+PE
Voltage Range(VAC)	90~280±3(normal mode);170~280±3(UPS mode)
Frequency(Hz)	50/60(Auto Adaptive)
AC OUTPUT
Rated Capacity (kw)	6
Peak Power(kVA)	10
Voltage (VAC)	208/220/230/240
Power Factor(PF)	1
Frequency	50/60Hz±0.1%
Switch Time(ms)	10(normal mode)/10(UPS mode)
Wave Form	Pure Sine Wave
Overload Capacity (Battery Mode)	60s@102%~110%load;10s@110%~130%load; 3s@130%~150%load;0.2s@>150%load
Max.Efficiency(Battery Mode)	93%@48VDC
Parallel Quantity	9
CHARGER(PV/AC)
Solar Charger Type	MPPT
Max PV Input Current/input Power	18A/6000W
MPPT Range@Operating Voltage (VDC)	120~450
Max PV Open Circuit Voltage(VDC)	500
Max PV Charge Current (A)	80
Max AC Charge Current(A)	80
Max.Charge Current(PV+AC)(A)	80

BATTERY
Rated Voltage(VDC)	48
Floating Charge Voltage (VDC)	54
Overcharge Protection(VDC)	61
Battery Type	Lithium and Lead-acid
INTERFACE
HMI	LCD
Interface	RS485/RS232/USB/Dry Contact
Monitoring	WiFi (Optional)

GENERAL DATA
Ingress Protection	IP20
Operating Temperature	-10℃~50℃
Relative Humidity	5%~95%(Non-condensing)
Storage Temperature	-15℃~60℃
Net Weight(kg)	9

Dimensions(WHD)	510306115mm(without bracket)
Max.Operating Altitude	4000m(Derating above 1000m)
