OFF-GRID INVERTER

PHOTOVOLTAIC INVERTER

Nickname:*

E-mail:*

Your Rating:

Comment:

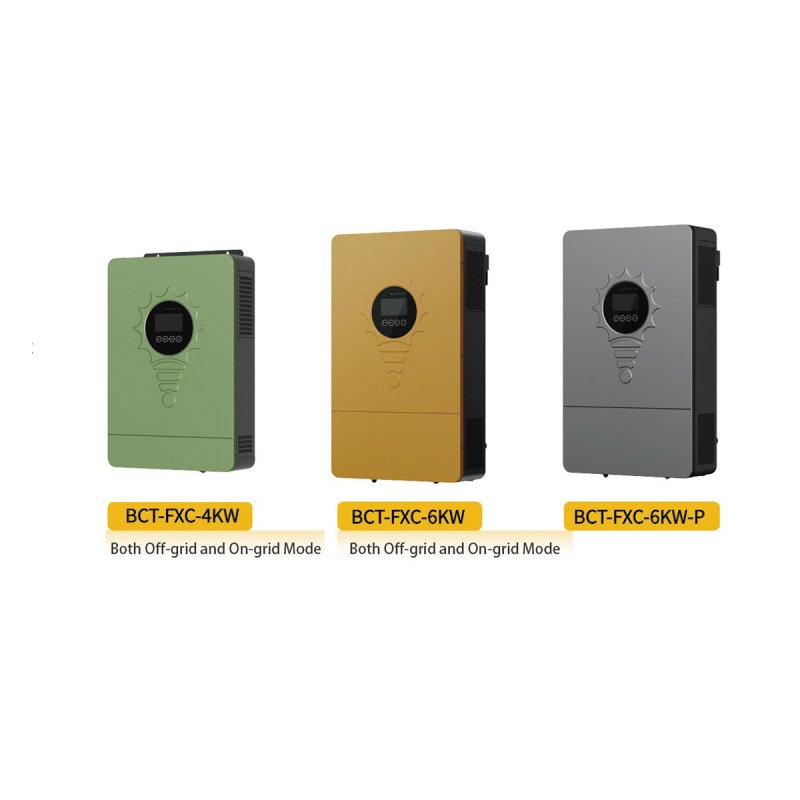

MODEL	BCT-FXC-4KW	BCT-FXC-6KW	9BCJetesSinparale
AC INPUT
Rated Input voltage(VAC)	208/220/230/240;L+N+PE
Voltage Range(VAC)	90~280±3(normal mode);170~280±3(UPS mode)
Frequency(Hz)	50/60(Auto Adaptive)
AC OUTPUT
Rated Capacity(kw)	4	6
Peak Power(kVA)	5.7	10
Voltage(VAC)	208/220/230/240
Power Factor(PF)	J
Frequency	50/60Hz±0.1%
Switch Time(ms)	10(normal mode)/10(UPS mode)
Wave Form	Pure Sine Wave
Overload Capacity(Battery Mode)	60s@102%~110%load;10s@110%~130%load; 3s@130%~150%load;0.2s@>150%load
Max.Efficiency(Battery Mode)	92.7%@24VDC	93%@48VDC	93%@48VDC
Parallel Quantity	NA	NA	9
CHARGER(PV/AC)
Solar Charger Type	MPPT	MPPT	MPPT
Max PV Input Current/input Power	18A/5000W	18A/6000W	18A/6000W
MPPT Range@operating Voltage(VDC)	40~450	120~450	120~450
Max PV Open Circuit Voltage(VDC)	500	500	500
Max PV Charge Current(A)	100	100	80
MaxAC Charge Current(A)	100	100	80
Max.Charge Current(PV+AC)(A)	100	100	80
BATTERY
Rated Voltage (VDC)	24	48
Floating Charge Voltage (VDC)	27	54
Overcharge Protection(VDC)	30.5	61
Battery Type	Lithium and Lead-acid	Lithium and Lead-acid
INTERFACE
HMI	LCD	LCD
Interface	RS485/RS232/USB/Dry Contact	RS485/RS232/USB/Dry Contact
Monitoring	WiFi(Optional)	WiFi(Optional)
GENERAL DATA
Ingress Protection	IP20	IP20
Operating Temperature	-10°℃~50℃	-10°℃~50℃
Relative Humidity	5%~95%(Non-condensing)	5%~95%(Non-condensing)
Storage Temperature	-15℃~60℃	-15℃~60℃
Net Weight(kg)	8	9
Dimensions(WHD)	490306115mm(without bracket)	510306115mm(without bracket)
Max.Operating Altitude	4000m(Derating above 1000m)	4000m(Derating above 1000m)
