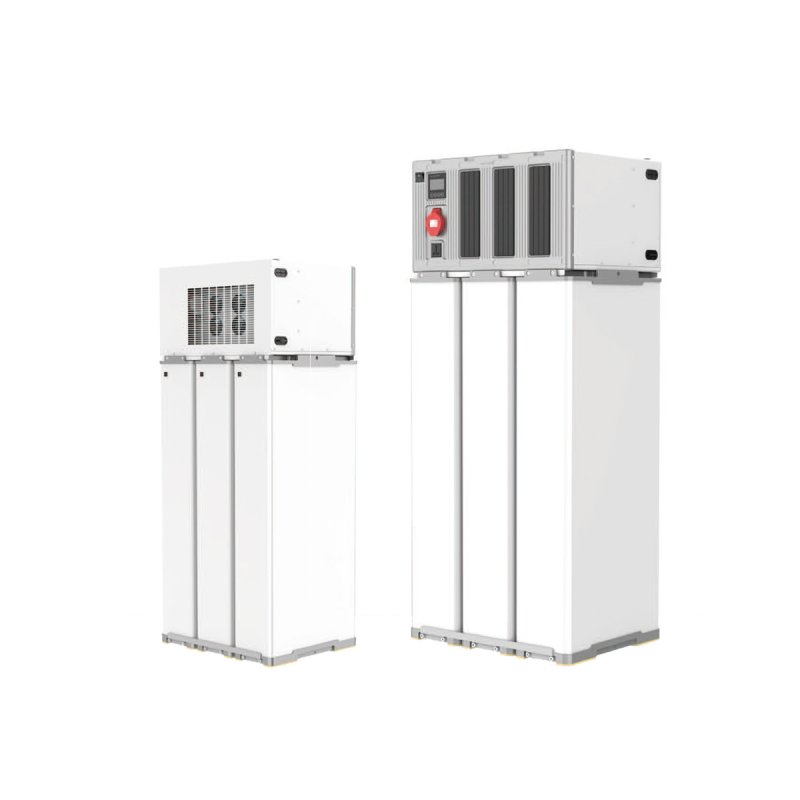

CHARGING,STORAGE AND INVERSION INTEGRATION

SYSTEM SOLUTION

Nickname:*

E-mail:*

Your Rating:

Comment:

	380V/18kW 45kWh	380V/36kW 90kWh	380V/54kW 135kWh
Battery Parameter
Nominal capacity	900Ah	1800Ah	2700Ah
Nominal voltage	48V	48V	48V
Electricity(kWh)	45kWh	90kWh	135kWh
InverterAC Output
Max power (kw)	18kW	36kW	54kW
Voltage (VAC)	360/380/397/415	360/380/397/415	360/380/397/415
Power factor (PF)	1
Frequency	50/60Hz±0.1%
Switch time (ms)	10(normal mode)/ 10(UPS mode)
Waveform	Pure sine wave
Overload capacity (battery mode)	60s@102%~110% load;10s@110%~130% load 3s@130%~150% load; 0.2s@>150% load;
Overload capacity (battery mode)
Max. Efficiency (battery mode)	93%@48VDC
Photovoltaic/AC input
Rated input voltage (VAC)	360/380/397/415;U+V+W+N+PE
Phase voltage range (VAC)	90~280±3(normal mode);170~280±3(UPS mode)
Frequency (Hz)	50/60(auto adaptive)
Solar charger type	MPPT
Max PV input current / input power	18A/6000W×3	18A/6000W×6	18A/6000W×9
MPPT range@operating voltage per unit (VDC)	120~450
Max PV open circuit voltage per unit (VDC)	500
Max PV charge current (A)	240	480	720
Max AC charge current (A)	240	480	720
Max. charge current (PV + AC)(A)	240	480	720
