Smart Power Station

SYSTEM SOLUTION

Suitable for energy storage management in households and power supply for large appliances;

can be equipped with photovoltaic components to form a household photovoltaic storage

system;as a power supply source or backup power source in remote areas or regions with

unstable power supply,supporting the charging of renewable energy;also meeting the needs

Nickname:*

E-mail:*

Your Rating:

Comment:

Pure sine wave

60s@102%~110%load;10s@110%~130%load;

3s@130%~150%load;0.2s@>150%load

93%@48VDC

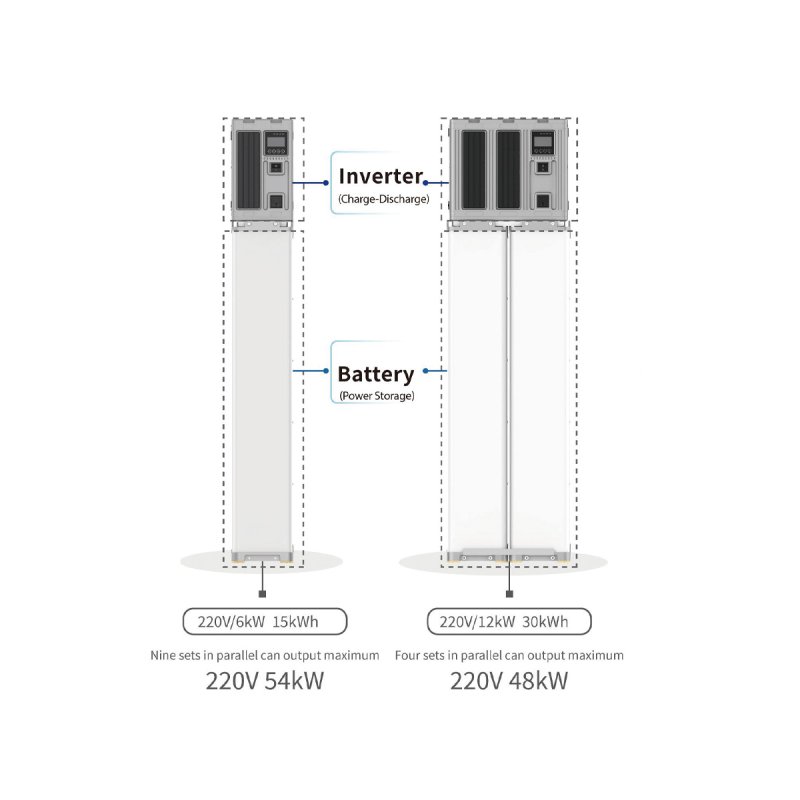

Parameter Item	220V/6kW 15kWh	220V/12kW 30kWh
Battery Parameter
Nominal capacity	300Ah	600Ah
Nominal voltage	48V	48V
Electricity(kWh)	15kWh	30kWh
Inverter AC Output
Max power (kw)	6kW	12kW
Voltage (VAC)	208/220/230/240
Power factor (PF)	1
Frequency	50/60Hz±0.1%
Switch time (ms)	10(normal mode)/ 10(UPS mode)
Waveform	Pure sine wave
Overload capacity (battery mode)	60s@102%~110% load;10s@110%~130% load; 3s@130%~150% load; 0.2s@>150% load
Max. Efficiency (battery mode)	93%@48VDC
Parallel	9 groups (54kW)	4 groups(48kW)
Photovoltaic/AC input
Rated input voltage (VAC)	208/220/230/240;L+N+PE
Phase voltage range (VAC)	90~280±3(normal mode);170~280±3(UPS mode)
Frequency (Hz)	50/60(auto adaptive)
Solar charger type	MPPT
Max PV input current / input power	18A/6000W	18A/6000W×2
MPPT range@operating voltage per unit (VDC)	120~450
Max PV open circuit voltage per unit (VDC)	500
Max PV charge current (A)	80	160
Max AC charge current (A)	80	160
Max. charge current (PV+AC)(A)	80	160
